| Quantity: | |
|---|---|
SIZE: ￠600 X ￠805X90
MATERIAL: DUCTILE IRON
STANDARD: EN124 CLASS: C250
ADVANTAGES: ANTI-ROCKING, ANTI-JUMPING, ANTI-MOVING. ANTI -THEFT, ANTI-FLY OFF.
WITH RUBBER GASKET, GRAVITY LOCK, ANTI-THEFT

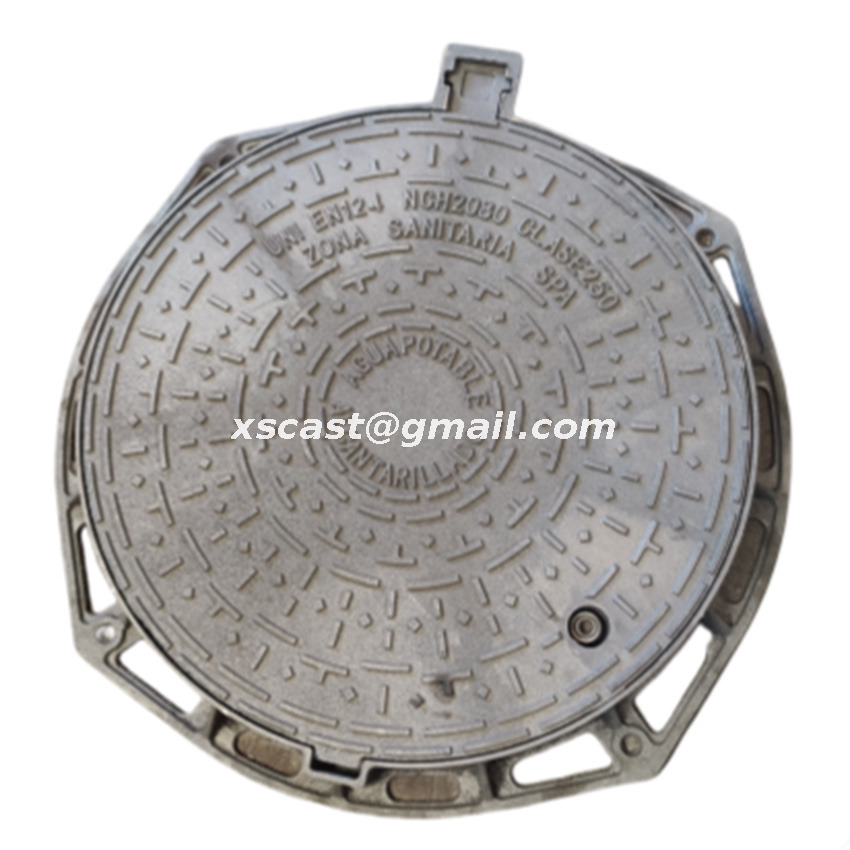

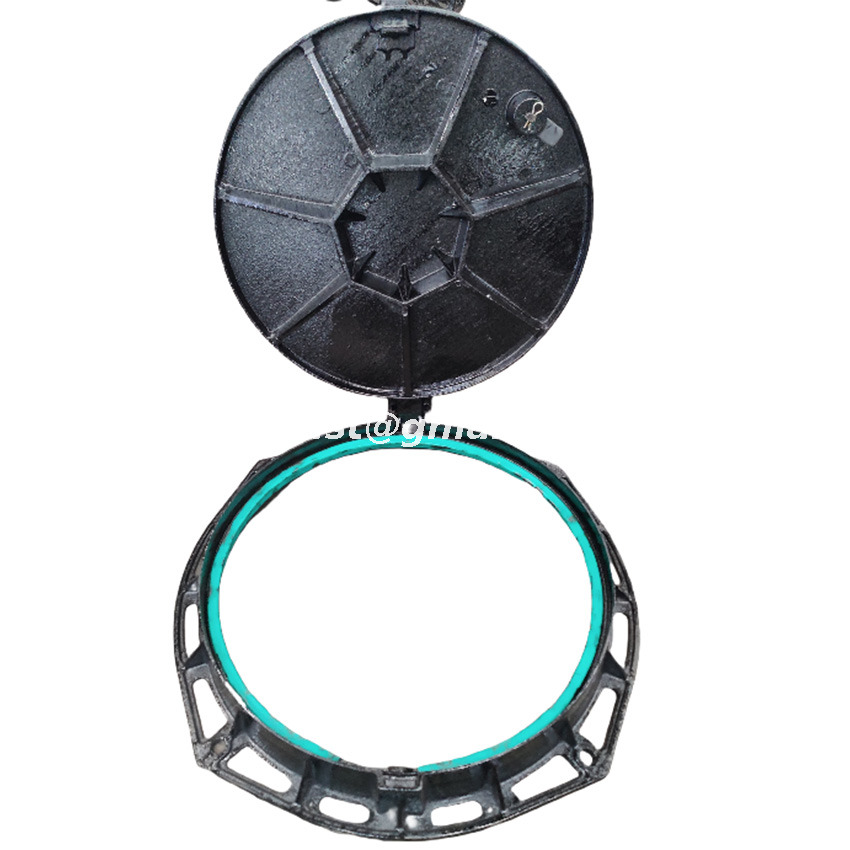

· Type - round hinged iron manhole cover, locking system, fasteners, gasket, ventilated. Frame equipped with a soundproof rubber gasket.
· Class- C250 minimum 25 tons resistance according to EN 124-1993.
· Material - nodular cast iron EN GJS 400-15 to ISO 1083 EN 1563 / A1.
· Site of use - access roads and traffic, stabilized shoulders and space stationary road vehicles, medium traffic.
· Applications - distribution channels, drainage networks, pumping and water treatment stations.
· Products contained in the Technical Agreement 003-05 / 238-2013.

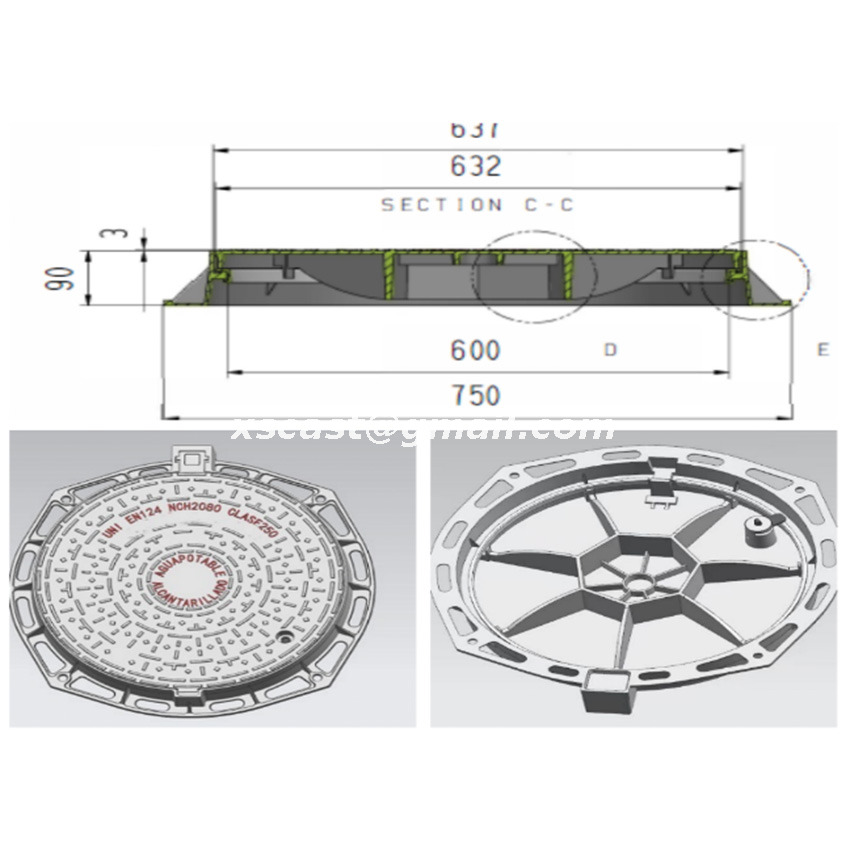

| CODE | CLEAR OPENING AXB(mm) | OVER BASE CXSD(mm) | DEPTH E(mm) | LOADING KN |
| 805C | 600 | 805 | 90 | C250 |
| 805D | 600 | 805 | 100 | D400 |
SIZE: ￠600 X ￠805X90
MATERIAL: DUCTILE IRON
STANDARD: EN124 CLASS: C250
ADVANTAGES: ANTI-ROCKING, ANTI-JUMPING, ANTI-MOVING. ANTI -THEFT, ANTI-FLY OFF.
WITH RUBBER GASKET, GRAVITY LOCK, ANTI-THEFT
· Type - round hinged iron manhole cover, locking system, fasteners, gasket, ventilated. Frame equipped with a soundproof rubber gasket.
· Class- C250 minimum 25 tons resistance according to EN 124-1993.
· Material - nodular cast iron EN GJS 400-15 to ISO 1083 EN 1563 / A1.
· Site of use - access roads and traffic, stabilized shoulders and space stationary road vehicles, medium traffic.
· Applications - distribution channels, drainage networks, pumping and water treatment stations.
· Products contained in the Technical Agreement 003-05 / 238-2013.
| CODE | CLEAR OPENING AXB(mm) | OVER BASE CXSD(mm) | DEPTH E(mm) | LOADING KN |
| 805C | 600 | 805 | 90 | C250 |
| 805D | 600 | 805 | 100 | D400 |
